ICS-17B electronic belt scale

ICS-17B electronic belt scale

  • Classification:Electronic belt scale series
  • Views:second
  • Date of issue:2020-01-09 16:11:41
  • Summary
  • Characteristic
  • Parameter

Product name: ICS-17B electronic belt scale


Summary:

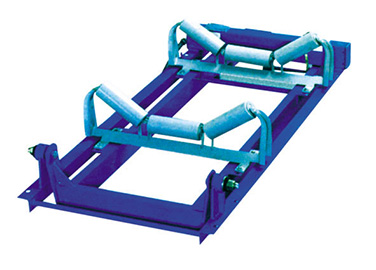

The structure of ics-17b electronic belt weighing frame is half of ics-17a, two sets of idlers are placed on the scale frame, two pull sensors are used to connect the weighing frame, and the dynamic measurement error is better than ± 0.25%. The scale is suitable for weighing control of industrial enterprises.


System composition:


ICS-17B electronic belt scale consists of four parts:


1. Weighing bridge 1 set

2. One tri-original weighing controller (instrument) (with 4-20ma output)

3. 2 weighing sensors (famous professional manufacturer)

4. One speed sensor and one speed measuring roller (type 60-12)


Structural features:


◆ simple structure, easy installation, less force transfer link;

◆ unique rectangular lever, good rigidity, intangible change;

◆ no friction rubber trunnion support, anti-corrosion, moisture-proof, anti-vibration;

◆ resistance to lateral force, resistance to horizontal component, effectively reduce the impact of belt runing and blanking deviation on the system precision;

◆ the two weight sensors are less affected by off-load, stable and with high precision;

◆ Type 17A: wide weighing area, four sets of idlers to minimize the impact of belt on weighing.


Main technical parameters:


◆ measurement accuracy: ±0.25%

◆ weighing range: 0 ~ 6000t/h

◆ belt width: 500 ~ 2200mm

◆ belt speed: 0.01 ~ 4.0m/s

◆ belt conveyor inclination: 0° ~ 18°

◆ remote transmission: 1200m


Working and installation environment:


◆ ambient temperature:

Machinery: - 20 ° C / + 50 ° C

Appearance: - 10 ° C / + 40 ° C


◆ power supply voltage: 220VAC (+10%, -15%) 50HZ±2%


Appearance size:


外形尺寸

Note: the bandwidth size not listed in the table is determined according to the actual frame


Installation diagram:

安装示意图
