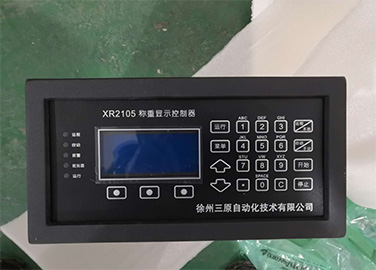

Product name: SY/XR2105 weighing controller

Summary:

SY/XR2105 weighing controller is a multi-functional microprocessor developed on the basis of 10-201 and 10-301 instruments. With strong anti-interference ability and intelligent menu operation, it is an ideal replacement for the old instruments. According to the function, it is divided into two types: 2101/2001 belt scale and 2105 coal feeder and batching scale.

Main features:

Functions: display - control - metering - communication - transmission - DCS

Power supply: 220v 50hz±2%; 25 va + 10%

Opening size: embedded 147*283*280 (length × width × height) wall-mounted 430*300*250 (length × width × height)

Input:

Weight input: millivolt level signal output from the load sensor;

Speed input: the pulse signal output from the speed sensor;

Output:

Two-channel current output 4-20ma.

Features:

◆a/d converter 20 bits.

◆ Chinese/English menu prompt operation, convenient for users to use.

◆ four rows of LCD display data, flow, speed, cumulative volume, load, time can be set as the same screen display;

◆ built-in multi-function regulator, can directly achieve pid adjustment in the internal instrument;

◆ guided menu operation, the instrument is equipped with self-diagnosis, alarm prompt, pulse output and zero automatic tracking function, and can achieve automatic correction of simulation or physical inspection error, and has a weighing linear compensation, temperature and humidity compensation;

◆ with automatic retrieval function, can at any time to the important parameters of the feeder for instantaneous retrieval, monitoring the operation of the feeder;

◆ the output function of solid state relay with accumulative ton pulse signal (dc24v);

◆ with high and low limit alarm, control deviation, fault self-diagnosis and output functions;

◆ metal plate sprayed shell, waterproof, dustproof, strong magnetic field interference;

◆ run the communication software under the support of the operating system, and realize all the display, setting, calibration and adjustment functions of the remote operating instrument on the computer.

◆ can meet the output of 4-20ma signal of instantaneous flow and cumulative flow and can communicate with DCS system reliably.
