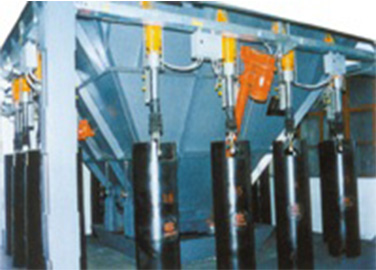

JPJ belt scale physical calibration device

JPJ belt scale physical calibration device

  • Classification:Physical calibration device
  • Views:second
  • Date of issue:2020-01-09 09:38:21
  • Summary
  • Characteristic
  • Parameter

Product name: JPJ belt scale physical calibration device


Scope of application:


JPJ physical calibration device (electronic hopper scale) for high precision static scale. Widely used in electric power, coal, metallurgy, building materials, grain and oil, wharf and other industries, as trade settlement wharf battering and electronic belt scale calibration, can completely overcome the belt scale drift large, low accuracy of the problem, measurement accuracy can reach five million.


System composition:


The system is mainly composed of metering system (weighing instrument, weighing sensor and touch block, wiring distributor), self-checking system (hanging yards, farmar hoist), weighing hopper, hopper limit mechanism, support framework platform, open and close institutions and plastic bucket, electrical components and console, optional PLC programmable controller and PC control system.


System features:


PLC control technology, centralized operation control, simple and convenient calibration;


Self-calibration, feeding, discharging and weighing control of the system can realize program automation;


According to the needs of users, interlock contacts of related equipment can be incorporated to ensure the safe and reliable operation of the system.


The hopper body can be designed according to the field environment. The hopper can be square, round or irregular.


With integral weight, the gross tonnage can be designed according to the standards and requirements;


The lifting of the weight adopts the electric weight elevator, which is easy to operate.


In order to ensure the accuracy and stability of weighing, the system adopts suspension structure and four non-contact limiting mechanisms to achieve reliable positioning.


Can realize the network communication with the upper computer, and can realize the upper computer to the system of equipment start and stop, belt scale instrument remote zero and other remote operations.


Main technical parameters:


技术参数


External dimensions :(due to different spatial locations on site, the dimensions of the following diagram are for reference only)


外形尺寸

Description:

1. The external dimension of this drawing is for the user's reference when choosing;

2. External dimensions can also be designed separately according to the specific situation of users;
