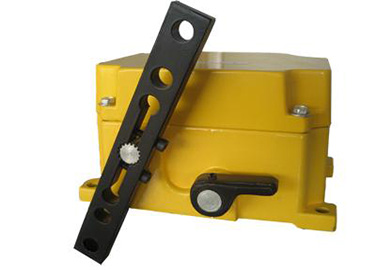

Sps-2d drawstring switch

Sps-2d pull rope switch, also known as pull wire switch, is used for emergency or normal shutdown. It is mainly used in: regular belt conveyor, shuttle conveyor, skirt-type feeder, bucket elevator, various production lines, feeder system, crane, excavator, ship handling system, horizontal feeder, etc.

Working principle:

One end of the steel wire rope of the sps-2d pull rope switch is fixed to the fixed pull bolt and the other end is fixed to the switch arm. When the pull rope is pulled by an external force, the switch arm is rotated to the alarm position and automatically locked until manually reset. The pull rope switch is a two-way arm rod, and the pull rope can be installed in both upper and lower positions.

Product features:

Introduce American technology and import key components. Two-way touches, can be installed in the middle of the conveyor position, also can be installed at both ends, the appearance of general design, can be installed on the top of the conveyor longeron, also can be installed in its sides, strong thick aluminum shell, is suitable for industrial application environment, one-piece cover plate design, makes the installation of wiring is very convenient, manual reset, make sure that when fault completely restored to boot.
